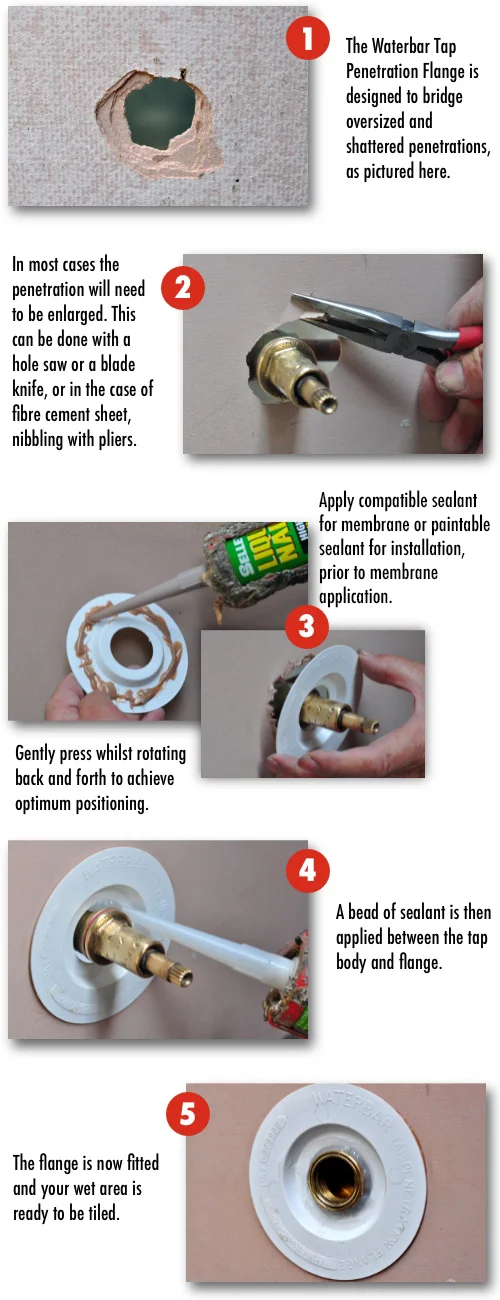

Installation is easy!
W6, W12 and W650 Flange

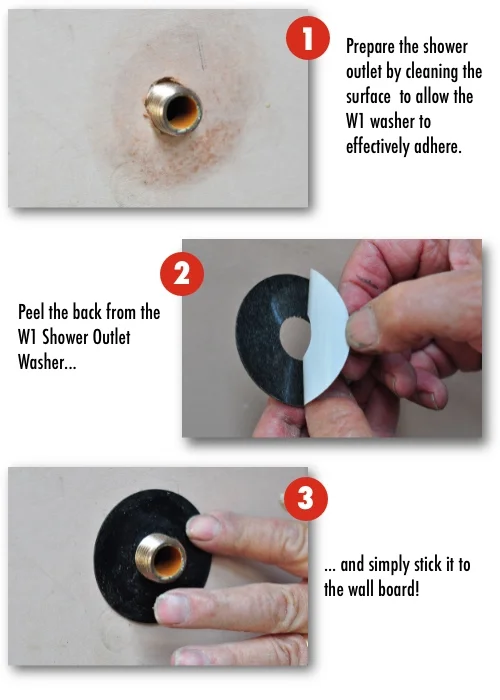

W1 SHOWER OUTLET WASHER
Product Dimensions
W6 & W12 Dimensions

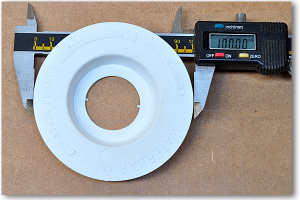

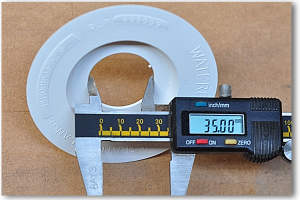

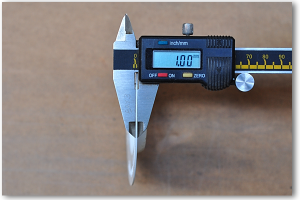

The W6 and W12 flanges are 100mm wide and 1mm thick, with a 35mm cutout.
– The W6 features a 6mm setback
– The W12 features a deeper 12mm setback
W650 Dimensions

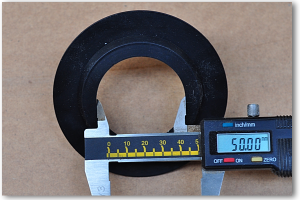

The W650 shares the same dimensions as the W6 flange, however features a larger 50mm cutout. This makes it a good fit for most mixer taps, however please note that it may not fit all mixer taps so remember to measure first!
